Retro QRP Rigs of the 1960’s, 70’s, and 80’s — Video by Mike WU2D

It is time to put aside (again!) all of the heated ideological arguments about the power level that defines “low power.” Just sit back and enjoy this wonderful trip down QRP memory lane.

Mike’s description of the simple, single-transistor QRP transmitter was really nice. I recently made something similar: https://soldersmoke.blogspot.com/2023/02/first-qso-with-high-school-receiver-100.html And Mike does a nice plug for our beloved Michigan Mighty Mite. Go CBLA!

The modular idea: words to live by my friends.

40673! TT2! And G3RJV’s PW Severn – indeed, bow your heads!

Wow, the Ten Tec Power Mite (or Might!) — I still want one. Same for the Argonaut — what a great name (sounds like a “magic carpet), and with SSB to boot! I want to join the Argonaut cult!

I have both the HW-7 and HW-8 (the HW-8 is heading to the Dominican Republic). This video makes me want to fire up the HW-7. Maybe on 40.

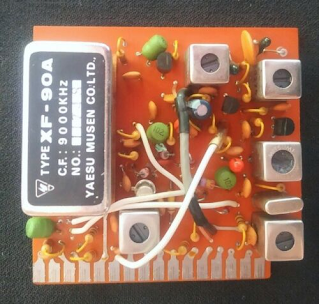

My 40 meter homebrew rig (Digi-Tia) has in it the filter from that old Yaesu FT-7 rig. The filter was given to me by Steve “Snort Rosin” Smith. https://soldersmoke.blogspot.com/2015/05/bitx-digi-tia-build-update-2-installing.html

Thanks to Mike for including me in the credit roll at the end. What a great group of people — it is a real honor to be listed with those folks.

QRPp Back Issues (and some new ones too!)

Here’s an index:

http://www.k7qo.net/qrpp_toc_de_k7qo.pdf

And here are lot of the back issues:

http://www.ncqrpp.org/

And I see there are August and September 2016 editions available in the Files section (KI6DS) of the qrp-tech Yahoo group. Did I see articles there from Steve “Snort Rosin” Smith?

Alan Wolke W2AEW Builds a Michigan Mighty Mite (Video)

We are honored to induct Alan Wolke W2AEW into the Colorburst Liberation Army. And for his valiant effort to build and explain a MMM Low-Pass filter, he is immediately promoted to the rank of CBLA Two Star General. Congratulations General Wolke.

As is the case with all of his videos, this one has already had an impact far and wide. Ian writes from far-off Western Australia:

Jan 27 at 6:19 PM

G’day Bill,Just in case none of your other correspondents have brought it to your attention, here is a great video W2AEW has put up showing really clearly the positive effect of a low pass filter on the output of the Michigan Mighty-Mite.

It made me appreciate the benefits of an LPF more fully. It’s always been clear to me that the harmonics would get rolled off, but in my head I hadn’t made the connection between that and the improvement to the beautiful smooth sine wave that we are working towards.

Anyway, I thought you, and your mate Steve “Snort Rosin” Smith may be interested.

Thanks to you and Pete for Soldersmoke, I’m sure you’re responsible for keeping the flame alight in many a ham.

73,Ian VK6MIB

And Steve “Snort Rosin” Smith, the guru of low pass filters, observes:

Of course, to work properly in the land down under, the inductors must be wound in the opposite direction as those in the Northern Hemisphere 😛 .

Seriously, there is a lot to be learned from the lowly Mighty Mite especially regarding impedance matching; not to mention LC circuits, link coupling, amplifiers, oscillators, etc. . What fun!

73…….SR

BITX DIGI-TIA Build Update #7: On The Air!

With lots of encouragement from Pete, I finally got the BITX DIGI-TIA on the air. The first contacts were made yesterday. I have it on 40 meter SSB. The finicky denizens of that audio-conscious band seemed to like the sound of the rig. I was almost reluctant to tell them it is homebrew (no need to stir up trouble!)

The plug in filter arrangement seems to work very well. This will allow me to put this rig on many other bands. All I have to do is build some additional filter boards and upload modified versions of the software. There is even space to make a plug-on socket for the crystal filter (the 9 MHz IF would not be cool for 17 meters).

I’m really pleased with the RF power chain (the original BITX chain). This time I built it all in a straight line along the back of the transceiver with lots of attention to shielding and grounding. There were no instability problems. The amplifiers did not try to be oscillators. I was shocked!

I did have to reduce the gain of the three termination insensitive transmit amplifiers. Using the chart in the 2009 Wes Hayward/Bob Kopski article, with just a few resistors you can set the gain. I had built them with 19.4 db gain each. This turned out to be too much — the slightest amount of audio into the SBL-1 was driving the amplifiers to peak output. So yesterday I changed all three amps to 15 db (I think that was what Farhan had in the original BITX). It only took me about 15 minutes and it seemed to take care of the problem. I am getting 7 or 8 watts out of the IRF-510.

T/R switching is very smooth and quiet using just two small 12V relays.

Thanks to Pete for the mil-pad boards and the encouragement (especially on the use of the Si5351). Thanks to Farhan for the BITX architecture. Thanks to Steve Smith for the Yaesu filter. Thanks to Wes and Bob for the TIA circuit. Thanks to Thomas in Norway for the Si5351 software. And Thanks to Allison for all the good advice.

Our book: “SolderSmoke — Global Adventures in Wireless Electronics” http://soldersmoke.com/book.htm Our coffee mugs, T-Shirts, bumper stickers: http://www.cafepress.com/SolderSmoke Our Book Store: http://astore.amazon.com/contracross-20

BITX DIGI-TIA Update #4

Lots of progress over the long weekend. Along the back you can see the three stages of the RF amplifier chain: 2N3904, 2N2218A, IRF510. I intend to add inter-stage shielding, and one long shield between the chain and the rest of the rig. Front and center is the Si5351 board (code by LA3PNA). Mic amp (which gave me a lot of trouble!) is to the right of the Si5351. AF (RX) amp is to the left (2N3904 and LM386). The big board in the center has the three Termination Insensitive Amplifiers (thanks Wes and Bob), the 9 MHz filter (thanks Steve Smith!) and the two SBL-1 mixers (thanks to Pete Juliano for the “mil-pad ” boards). And thanks to Farhan for the overall BITX concept and the TIA suggestion.

In the upper right you will see where the plug-in low-pass filter will plug in (a better picture appears below). I will use a similar plug-in for the band-pass filter. Combined with the BFO/VFO flexibility of the Si5351, this plug in feature should allow me to cover many bands with this rig.

BITX DIGI-TIA Build Update #2 Installing and Testing Yaesu SSB Filter

Termination Insensitivity. It sounds like some sort of psychological problem, but it is not!

CBLA Field Manual

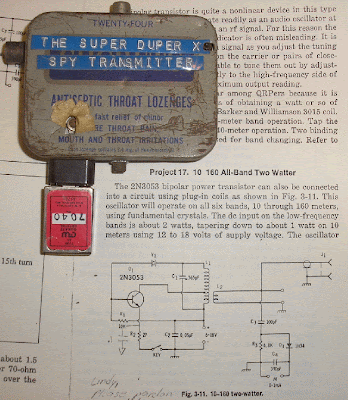

I’m starting to worry about a visit from Homeland Security. I found this on the blog of W6IEE. He blames K6FWT.

The CBLA has a Yahoo Group: https://groups.yahoo.com/neo/groups/CBLA/info

Up the revolution! Fight the Powers that Be!

Pete’s Michigan Mighty Mite Manhattan MePad Noodle

New recruits have been signing up for the Color Burst Liberation Army. We have been sending out many more 3.579 MHz crystals. Pete Juliano was doing some noodling and came up with this plan for Manhattan pads or Me(Maine)Pads. All you need is some copper clad board, a pair of Home Depot tin shears and some super glue. Cut out the pads, glue them down, add components and get the Mighty Mite percolating.

Swedish Mighty Mite

A thing of beauty! Check out the key!

What a great diagram. Schematic included!

http://www.sm7ucz.se/MMM/MMM.htm

Remnants of mine

Steve “Snort Rosin” Smith’s

More on all this:

http://soldersmoke.blogspot.com/search?q=michigan+mighty+Mite

“That 70s Show”: Steve “Snort Rosin” Smith Restores a 70’s era Tuna Tin 2

Hi Bill,

Your recent stories about your TT-2 and original TT-2 “mojo transfer” prompted me to resurrect my TT-2 ‘resto’ project.

The attached photos show my 70s era TT-2 obtained for $5 from a QRP-L member. This is how I received it and you can see that it’s almost a duplicate copy of the original, complete with ‘phenolic’ substrate PC board material and hand-scrawled traces.

I have collected most of the components necessary to convert it to a look-alike of Doug Demaw’s 1976 item. I already have 1 or 2 of the proper Radio Shack RF chokes but lack one more to have the complete set and I’m about to grab some original Radio Shack 276-1617 transistors. The rest of the missing/incorrect parts I can drag out of the ever expansive Snort Rosin junque box.

By hand selecting the two transistors for max. power gain I hope to eek 300 mW out of the thing.

Anyway, hope you enjoy the shots and I’ll send more when it’s finished.

73…….Steve Smith WB6TNL
“Snort Rosin”

“Snort Rosin” Seal of Approval for “Ferrari-esque” Italian Wire Cutters

And now for something (almost) completely different. Rarely have wire cutters been described in such, well, almost erotic terms. This definitely seems like the stocking-stuffer of the year for the SolderSmoke in-crowd. And to think that I was pleased with a pair of $3.99 hemostats that I got from Amazon.

Hi Bill,

It’s always nice to find something high-quality and inexpensive and today it happened to me so I thought I’d share my good fortune.

Having been in the professional radio repair business for 40 years (retired 2012), I very much appreciate quality hand tools. On my bench at home I have an expensive pair of Lindstrom wire cutters but in the field I generally resorted to cheaper, not so high-quality tools (in case of inadvertent loss). The problem at home is it seems like every time I need to grab my Lindstroms, they’re not where I’m at so I’ve been on the lookout for a spare pair or two of quality cutters. Well, today in the Fry’s Electronic newspaper flyer I saw an ad. for Hakko brand wire cutters on sale for $2.99, regularly $4.99, a 40% saving. Me being, shall we say, “thrifty”, this immediately got my attention. I know Hakko markets some very good soldering related equipment, however until today I had no experience with their line of hand tools.

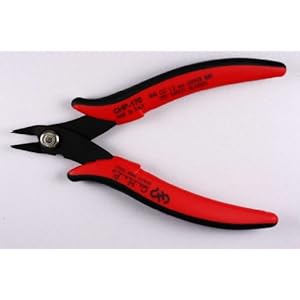

So, between some appointments this morning I stopped at our local Fry’s store and checked out the cutters. I was expecting to find something typically cheap and made in China so imagine my surprise at discovering they are made in Italy! The part # of this particular tool is CHP-170 and is mfg. by the CHP Tools division of Hakko. The hand grips are palm-fitting and very comfortable with thumb and forefinger rests at the top of each for tool manipulation. The design is what I would call “Ferrari-esque”; bright red with black accents. Very pleasing to the eye. Turns out that The metal parts are high grade tool steel and Parkerized for low reflectivity and high wear and corrosion resistance. What impressed me the most is the cutting surfaces; they mate perfectly. So many inexpensive cutters have lousy mating surfaces, these don’t. With the cutting edges ‘closed’, shining a high-intensity light on one side results in -no- light ‘leaking’ by the mated edges. That’s first-class machining!

IMO, even at the typical price of $5 or so, these cutters are a bargain, especially considering the quality (how does one say, “it is very good!” in Italian?). So, if you or anyone you know is in the market for some great wire cutters, tell them that the Hakko CHP-170 has the “Snort Rosin” seal of approval, HA!

73…….Steve Smith WB6TNL
http://www.amazon.com/Hakko-CHP-170-Maximum-Cutting-Capacity/dp/B00FZPDG1K

Vanguard!

Wow, Vanguard even looks like a QRPp satellite.

I suspected that something was up: I noticed that Mike Rainey, AA1TJ has recently been crossing pond with a QRPp Germanium rig… Then Steve “Snort Rosin” Smith clued me in: The next period of Vanguard QRPp Activity Days begins tomorrow. “Club 72” has a nice write up, and a nice collection of pictures of the Vanguard rigs that have been built around the world:

http://www.club72.su/vanguard.html

Go Germanium! Go Vanguard!

Schematic of the VK3YE “DSB-On-The-Beach” Rig

Peter Parker’s amazing 8 transistor DSB rig (featured in an equally amazing YouTube video — see earlier blog post) has sparked a worldwide resurgence of QRP minimalism. There is now a lot more activity on the “Minimalist QRP Transceivers” Yahoo group (be there or be square). Steve “Snort Rosin” Smith WB6TNL is minimalist mentoring to the max — with his help it looks like more VK3YE transceivers will soon be on the air. Steve was kind enough to take the info from Peter’s video and turn it into a .pdf schematic (see above). It is in the file section at the Minimalist QRP Transceivers group. I was, of course, pleased to see the inclusion of a robust 7 element low pass filter.

Michigan Mighty Mites are also tickling the ether. I may pull out my single MPF-102 Yingling 80 meter rig. You can join the Minimalist group here: http://groups.yahoo.com/group/Minimalist_QRP_Transceivers/
