75/20 – 17/12 Two Homebrew Rigs in Scrap-Wood Boxes

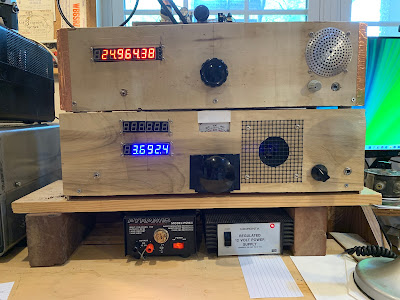

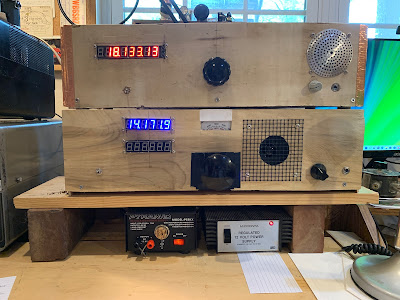

I moved the 17/12 Rig off the workbench and placed it (as planned) atop the Mythbuster rig. Now I have four bands easily accessible. In these pictures you can see all four bands being displayed on the San Jian Frequency Counters.

I found a kitchen drain screen that is an ideal cover for the 3 inch speaker in the 17/12 rig.
I reconfigured the Low Pass filters in the CCI .1 kilowatt amplifier. I put a 12 meter LP filter in there in place of the 40 meter LP filter (that I haven’t been using much).

I have been working a lot of DX on both 17 and 12.

The 17 & 12 SSB Transceiver — Circuit and Build Info — Video #4

I REALLY LIKE THIS RIG. IT IS LIKE A MAGIC CARPET THAT CARRIES MY VOICE ACROSS THE SEAS.

Cutting Display Hole sets off smoke alarm. Reverse Polarity Protection. IF and Crystal Filter at 21.470 MHz 50 ohms! TRGHS! Amp for VXO Carrier Oscillator/BFO. Mic Amp from uBITX. Transmit/Receive switching from mic connector. VFO: NO DIE CAST BOXES! HT-37 Variable Cap, Frequency Shift. BP filters from QRP LABS designs (G0UPL). TIA amp boards from K7TFC. Needed RF amp to hear band noise. BITX40 PA design, but RD006HHF1 instead of IRF510. Should I run receiver input through LP filter? Frequency Readout Story: How to use one San Jian counter on two bands.

First Ever Contact on 12 Meters: Homebrew, QRP, SSB, DX (Video)

I’ve recently finished most of the circuitry on the 17-12 meter dual band SSB transceiver. I have had contacts with it on 17 meters, but until yesterday morning (March 22, 2022) I had not had any contacts on 12 meters. This morning I talked to Paul EA5JZ in Valencia, Spain. I was running the 17-12 rig barefoot at about 5 watts with the final being one RD06HHT FET. The antenna was my 75 meter doublet fed with window line — I had to modify the tuner to get it to work on 24.9 MHz. It was very cool to have my first 12 meter contact be QRP, HB and with Spain.

There is a LOT of soul in this new rig. Here is a partial list of contributors:

— Overall BITX design: Farhan VU2ESE

— Termination Insensitive Amplifiers (TIA): Wes Hayward W7ZOI and Bob Kopski K3NHI.

— TIA boards from Todd K7TFC

— ASK-1 Mixer from Armand WA1UQO

— VFO design parameters from Joe Carr K4IPV (SK)

— VFO stability ideas from Frank Harris K0IYE and Mike Murphy WU2D.

— HT-37 Tuning Capacitor bought from e-bay at suggestion of Pete Juliano N6QW.

— Pine board base of the rig: Frank Jones (SK) W6AJF’s preferred building technique.

— DTC Band-Pass filter circuits from Han Summers G0UPL.

— Low pass filter values from G-QRP web site.

— Idea of using RD06HHT instead of IRF-510 in the final: Pete Juliano

— Heat sink from Chris KD4PBJ

— Trifilar Toroids used in many places from Farhan VU2ESE.

Thanks to all. 73 Bill

17 – 12 Dual Band SSB Transceiver On-The-Air

It is still completely al-fresco, with all the guts exposed, but I got it on the air this morning. I was 17, running it through my CCI .1kW 100 watt amp to a tuned doublet. Four QSOs so far: HP3SAM, K5BM, N4ZUL, and II3WRTC.

The structure of the rig is basically BITX.

The blue boards you see are TIA boards developed by Todd K7TFC.

No major problems to report. I will try it out on 12 meters soon. The receiver was working well on that band.

Video #3 17/12 Transceiver — Receiver is Working on 12 and 17 meters (Listen! Video!)

Here is an update on the 1712 transceiver project. The receiver circuitry is done and I can listen on 17 and 12 meters. In this video I was using my 75 meter doublet tuned to 17 meters (reception on 12 was pretty good using this antenna). As you can see, I found a temporary solution to the VFO dial problem — I am using the cardboard tube from a coat hanger super glued to a knob. The tube fits snuggly over the shaft from the VFO assembly.

Hans Summers’ QRP Labs Bandpass Filters:



Thanks Hans!

Video #2 17/12 SSB Transceiver — Receive RF Amplifier Needed?

Lots of progress to report on the 1712 rig.

With just two TIA amps (one on either side of the 10 pole filter) and the AF amplifiers, I now have it inhaling on 17 meters. But nothing heard so-far on 12. On both bands I can hear the band noise, but just barely. So I may try some RF amplification ahead of the mixer. What do you guys think about this? I think the two TIAs and the crystal filter are providing 30 db of gain.

I want to get the receiver circuitry working well on both bands before I build the T/R and transmit amplifier circuitry.
It is nice to have a project on the bench!

I am trying to find a shaft extender or adapter for that big beautiful HT-37 main tuning cap. The shaft on the capacitor has a width of 1 cm or 0.393701 inches. I need something that will grab onto that and allow for the connection of a tuning knob. Please search your junk boxes!

An Analog LC VFO for my 17/12 Meter SSB Transceiver (VIDEO #1)

Here’s my initial work on a VFO for my 17 meter — 12 Meter Single Conversion Dual Band SSB Transceiver. The IF (crystal filter) will be at 21.4772 MHz. On 12 meters the VFO will run from 3.5128 to 3.4528 MHz. On 17 the VFO will run from 3.3092 to 3.3672 MHz.

The transistor I am using is an SK3050 Dual Gate MOSFET. I bought a bunch of these years ago in a panic when I heard that 40673’s were getting scarce.

I forgot to mention another important reference: Joe Carr’s Popular Electronics VFO articles:

Thanks again to Dale K9NN for the bags of NP0 capacitors. And to Pete N6QW for the suggestion on the HT-37 main tuning cap. Thanks to Mike WU2D for the great VFO videos, and to Frank Harris for his wonderful book on homebrewing. And we can’t forget the great reference books that guide so many of our projects: Solid State Design for the Radio Amateur and Experimental Methods in RF Design — thanks to Wes Hayward W7ZOI and all of his co-authors.
