Month: June 2017

The Workshop at AA8V

Field Day was a big success for me this year. I was in category “1E” which meant that I was home in the air conditioning, but doing my bit for emergency service by using a gel cell as my power source. A SOLAR CHARGED gel cell. So don’t anyone call me a slacker, OK?

I was on my HW-8 and made a total of two contacts. The second was with AH6AX. I wasn’t fooled — I knew they weren’t in Hawaii. But the op gave me his home call: WB8YYY. Curt is a SolderSmoke listener. In a follow-up e-mail he alerted me to the web site of AA8V. Great stuff. Thanks Curt.

Here is the AA8V workshop:

http://faculty.frostburg.edu/phys/latta/ee/workshop/workshop.html#electronics1

AA8V was on the QSO Today podcast not long ago.

Mod to Correct DESIGN ERROR in Heath HW-8

130k resistor inside heat shrink, across R-24
SPRAT 161 (Winter 2014/15) had a very intriguing article about the Heath HW-8 by Dave M0CEM. Dave wrote about a possible design error in the active filter of the receiver. The center frequency and gain shift significantly when you switch from “Wide” to “Narrow.” I was very interested because for many years I have noticed this problem in my own HW-8. I just left it in “Wide” and never used the more narrow filter.
Dave did some excellent circuit detective work and determined that the problem was R24. He prescribed a change: instead of 82k it should be 49.8k. The placement of a 130k resistor across the 81k R24 would have the same effect.
Yesterday morning I installed Dave’s mod. I did as he suggested and put a 130k resistor across R24. Brilliant! What a difference! In the past, I noticed a significant degradation in signal strength when I put the filter in the “Narrow” position. This doesn’t happen now — the response obviously does narrow, but the center freq stays the same.
It is really amazing to me that the Heath engineers made this error, and that it went uncorrected for so many years. There have been many, many modification articles for the HW-8 over the years, but I haven’t seen any that really address this problem.

If anyone has more info on how this design error happened and why it went uncorrected for so long, please let me know.

Thanks to Dave and SPRAT for getting us back on the straight and narrow.

Straight Key QRP Homebrew Adventures — TRGHS

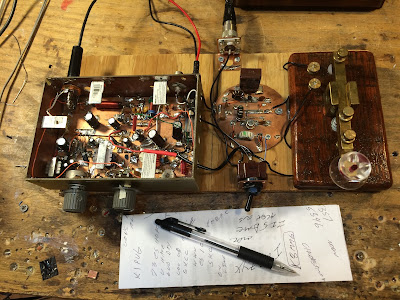

Last Saturday I put the Tuna Tin Two Top together with my Herring Aid Five 38 (year) Special and the Indian key that Farhan gave me. I discovered that some of my 40 meter CW FT243 crystals had disappeared into the entropy of the shack. But I was able to find one for 7050 kHz. That was a bit of good luck because it turns out that 7050 is the frequency of a congenial group of operators known as the Straight Key Century Club. I felt right at home. I have been inducted. My SKCC number is 17272. Very QRP, don’t you think? It is almost a Vanity SKCC. Clearly, TRGHS.

I have been having excellent luck with this 7 transistor rig. I have had one contact each day since I put it on the air, all of them in response to my CQ calls. I’ve worked:

K1PUG Hank in Connecticut (twice)
W8HOG Jerry in Ohio
WA4GQG Kevin in North Carolina
WA2AAW Frank in New York
KM4FO Dwight in Kentucky


This morning I added a little piezo buzzer for sidetone. I am thinking of adding a VFO to the Tuna Tin.

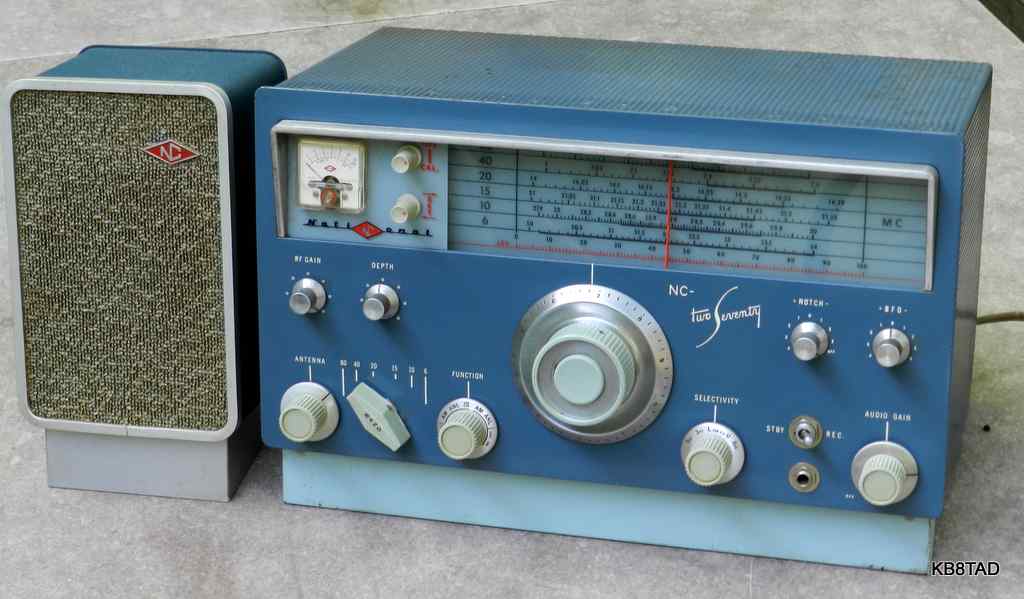

The Possible Inspirations behind “Juliano Blue”

Close in color don’t you think? Dave Ishmael WA6VVL noted the NC-270 receiver’s color was “Cosmic Blue.” Indeed, National noted the unusual color (“outstandingly different”) in its advertising. This now-rare receiver was produced between 1960 and 1964, so it could have influenced Pete. Of course, the CK-722’s color could also have played a role…

BTW, shouldn’t we ask Pete to get out his guitar and give us some “Juliano Blues”? We need some music to go with the paint.

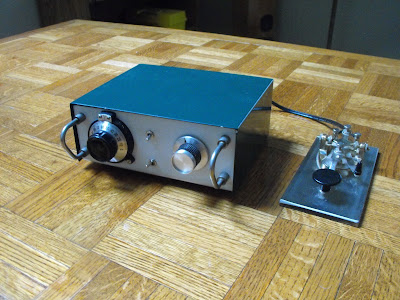

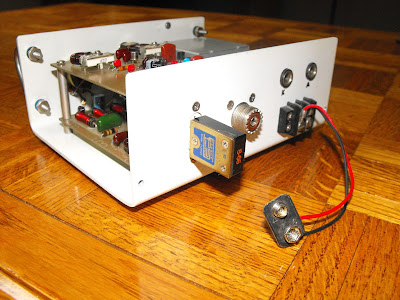

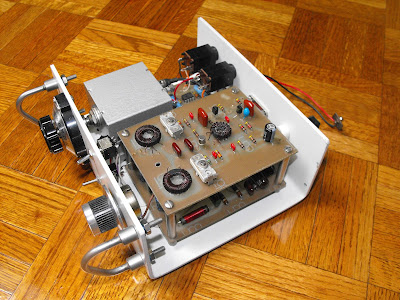

More “Canned Seafood” Homebrew CW, from KA4IBG

Bill:

My xYL hates sardines, but they look good together !
In the late 70’s the community had a fetish for canned seafood and DC receivers. Do you remember the 80m Sardine Sender ? How about YL Special ? (QST Oct and Jan 1979.) I married them together in a kludged-together box made out of a bent rack-mount panel and defunct aluminum chassis cover.
The bottom board is the rock-bound transmitter. The upper deck is the receiver board. The little mini box contains VFO (so cute.) The 741 audio board is tucked under the scrounged ¼ inch jacks.

Super simple, but lots of fun. It’s a handy rig for the week at the beach, although 80m propagation and beach week are 6 months out of phase.
Ed Hlywa
KA4IBG

Solstice Special: Midwinter BBC Messages to Antarctica
Thanks to SWL Post for alerting us to this wonderful annual event. BBC SW stations send a special program to the UK crews at the Antarctic bases. SWL Posts asks for listeners to record this year’s program:

http://swling.com/blog/2017/06/help-record-the-2017-bbc-antarctic-midwinter-broadcast-today/

 Here is an excellent recording of the 2015 show.

https://soundcloud.com/vinylzone/bbc-midwinter-special-transmission-for-antarctica-on-9590khz-21062015-21230z

And here is a recording of the 2017 broadcast:

https://ia601501.us.archive.org/30/items/BBCMidwintersDayBroadcast/BBCWorldService-Antarctic-Midwinters-Day-Broadcast-5985kHz-2130-2200-21-06-2017.mp3

Solstice Special: Midwinter BBC Messages to Antarctica
Thanks to SWL Post for alerting us to this wonderful annual event. BBC SW stations send a special program to the UK crews at the Antarctic bases. SWL Posts asks for listeners to record this year’s program:

http://swling.com/blog/2017/06/help-record-the-2017-bbc-antarctic-midwinter-broadcast-today/

 Here is an excellent recording of the 2015 show.

https://soundcloud.com/vinylzone/bbc-midwinter-special-transmission-for-antarctica-on-9590khz-21062015-21230z

And here is a recording of the 2017 broadcast:

https://ia601501.us.archive.org/30/items/BBCMidwintersDayBroadcast/BBCWorldService-Antarctic-Midwinters-Day-Broadcast-5985kHz-2130-2200-21-06-2017.mp3

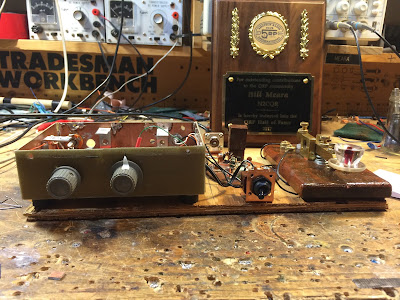

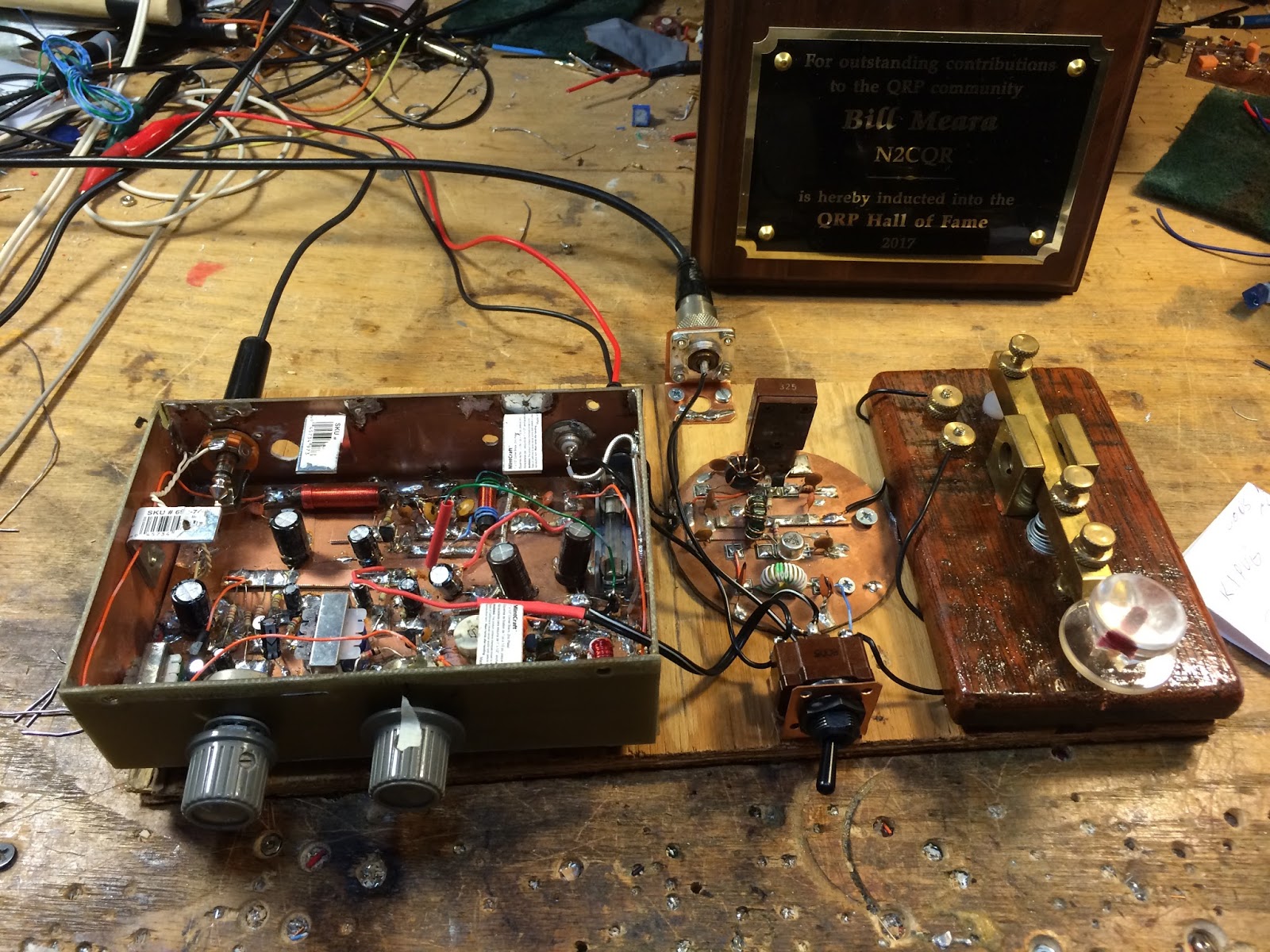

A Fishy Rig: Herring Aid Five, Tuna Tin Two, VU2XVR Key

Haunted by a fear of rapid expulsion from the QRP Hall of Fame, I decided that I should immediately do something to establish some form of QRP street cred. Looking around the shack, I realized that all of the ingredients were there: My Herring Aid Five Direct Conversion receiver (completed after only 38 years), my Tuna Tin Two transmitter, the VU2XVR key that Farhan gave me, one 7050 kc FT243 crystal. I put it all on a piece of scrap plywood. A couple of nice connectors from W8NSA supported the DPDT T/R switch and the coax connector. I keep the receiver LO running all the time.

Now, let’s be clear: running 250 milliwatts, rock bound with a Direct Conversion receiver that tunes both sides of zero beat is not for the faint of heart. The log book does not fill up rapidly. But hey, I made one contact the following morning. K1PUG said I was 559 in Connecticut.

SolderSmoke Podcast #197: Farhan, Fame, ‘Fest, Testgear, SSB History, Dishal Dystopia, QRP CW, MAILBAG

SolderSmoke Podcast #197 is available:


Up in NYC, met Dave W2DAB. got Steve Silverman’s HP 8640B Sig Gen.
Farhan’s visit to SolderSmoke HQ
Got me a TEK1401A Spectrum analyzer
Farhan at “Geekfest” @W7ZOI http://w7zoi.net/Farhan-visit.html
BITX40 Modules. 5,000 already. 1,000 a month.
The BITX pronunciation problem.
QRP Hall of Fame. I suspected April 1 reprisal! “I am unworthy”
Dusting off my Tuna Tin 2, Herring Aid 5 and Farhan’s key from India.

The Manassas Hamfest: OLD crystal gear. 20’s and 30’s stuff. Leon Lambert RX and Philmore Fixed Crystal Detector.
Reminder of how YOUNG the radio art is.
RELATED: Bell System 1953 Transistor Documentary. 11 year old Pete and his CK722.
Bought some good stuff from Charles AI4OT.
Armand WA1UQO gave me a big collection of Electric Radio. So much history and HB wisdom in there. Frank Jones and Lafayette Radio. Jim Lamb and 1930s SSB.
Is the CK-722 the source of Pete Juliano’s affinity for Juliano Blue?
Was Wes Hayward already using Juliano Blue?
“Your rig sounds real good for a homebrew rig!”
“Well, your rig sounds pretty good for a Yaesu!”
Related topic: Going over the Waterfall: The SDR Superiority Syndrome. Feathering.
ARRL Arduino Book by Popiel. Very nice. Right level. Lots of good info.
BENCH REPORT:
Pete’s Dishal Dystopia — Is the perfect TRULY the enemy of the good enough?
Bill’s NE602 RIG:
Replaced OLED. Blue one seems noisier. Shielded it with copper flashing.
Made me yearn for bigger boxes WITH A HOOD!
DOCUMENTING WITH LTSPICE
MAILBAG:
Special Thanks to our correspondent in the Dayton Xenia Metropolitan area — Bob Crane W8SX.
Jack Welch, AI4SV 5R8SV — Our Man in Antanarivo — Sent me a GREAT BOOK “I, Libertine” by Frederick R. Ewing. EXCELSIOR!
Bruce KC1FSZ https://www.qrz.com/db/kc1fsz Building Scratchbuilt BITX. On the way put the VFO where the BFO should go and had a DC RX. FB
Greg, VK1VXG Suggestion for WA8WDQ on Arduino serial plotter
http://www.instructables.com/id/Ultimate-Guide-to-Adruino-Serial-Plotter/

Ben KC9DLM Mercury PTO. In a syringe! No thanks! Maybe add some high voltage and selenium. And a radium dial! Yea!
KY3R’s metalized cigar boxes! FB On Blog.
Richard WB2PEF has revived his Doug DeMaw 8P6 rig. FB. But bothered by PTT thump.
Update on Dave AA7EE (from Mike KC6SAX)

AI4OT and N2CQR
N2CQR AND W2DAB

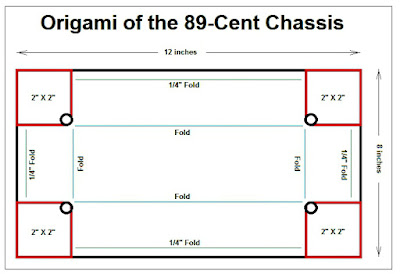

KI6SN’s 89-Cent Project Box Chassis

Eric 4Z1UG had a great “QSO Today” interview with Richard Fisher KI6SN. Richard mentioned his method for making project boxes. The commercial versions are getting very expensive, and the used ones are now hard-to-find at hamfests. So use Richard’s technique to roll your own!

Details here: http://arsqrp.blogspot.co.il/2016/03/the-89-cent-homebrew-metal-project-box.html

FB. Thanks Eric. Thanks Richard.

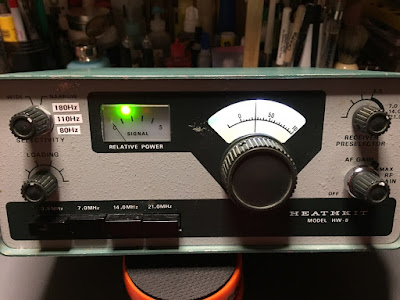

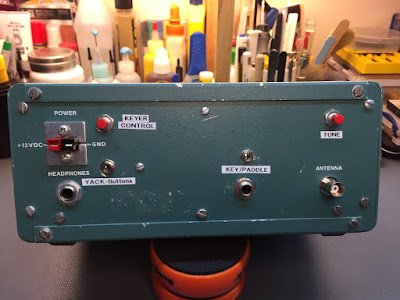

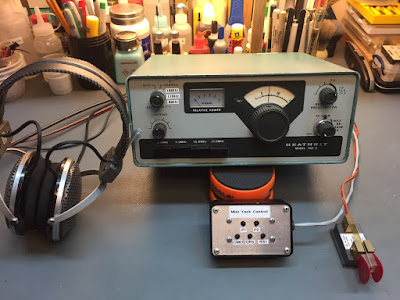

Dino’s HW-8 Mods

Bill –

Enjoyed the recent Hamvention interview with Ed Hare and your comment about him and a Heathkit HW-8 QRP rig. I recently rescued the HW-8 I bought on eBay that had been sitting in my project queue for several years. As I was refurbishing the rig I found that John KC9ON (http://kc9on.com) has several HW-8 mods that are very reasonably priced and I incorporated in the the refresh. They included replacements for the audio amplifier and the T/R relay, the “miniYAK” electronic keyer that I installed internally and built-up a external control dongle for the keyer. Cleaned up the additional audio filter that the previous owner had installed (ancient MFJ CWF-2 op-amp filter, surprisingly still available from the MFJ Vectronics brand, model VEC-820K) and did a complete realignment of course. The T/R replacement includes provision for a red and green LED that indicates that the rig is in the receive mode (green) and transmit (red); I was able to mount them directly behind the relative output meter using a piece of plastic drapery hardware (always pays to keep that kind of stuff!). Finally installed a fresh S-meter mod.

RF output is ok on all the bands except for 15m and I still need to figure that out. Getting rid of the old Molex power connector and replacing it with a Powerpole was a real plus I thought. Have swapped out the PA transistor with several different types but the one the last owner substituted in seems to be the best (ECG488). Have to admit I’ve never been a devoted QRP guy but love the community for it’s technical bent but since I’ve been looking for some new challenges I thought this would be a enjoyable one.

As you’ve pointed out Mike Bryce’s HW-8 handbook is a must have for anyone updating their radio and there is also a seminal 2-part article series in CQ magazine that probably started the mods craze; they appeared in the August and October 1977 issues of CQ.

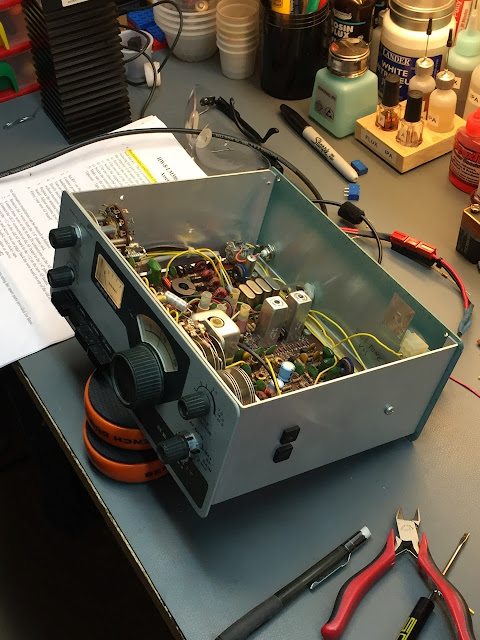

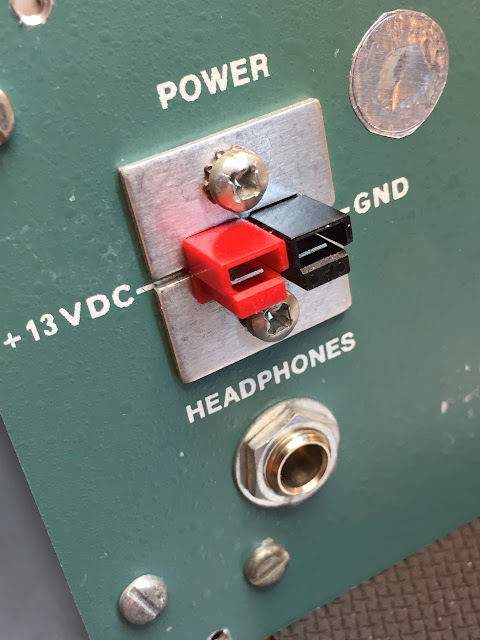

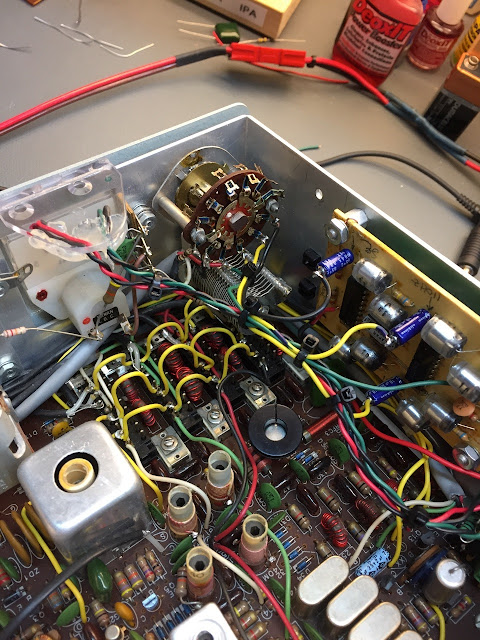

Here are some pix of the clean up process and shows I’m not afraid to drill holes in a boat anchor to make it more useable!

73 – Dino

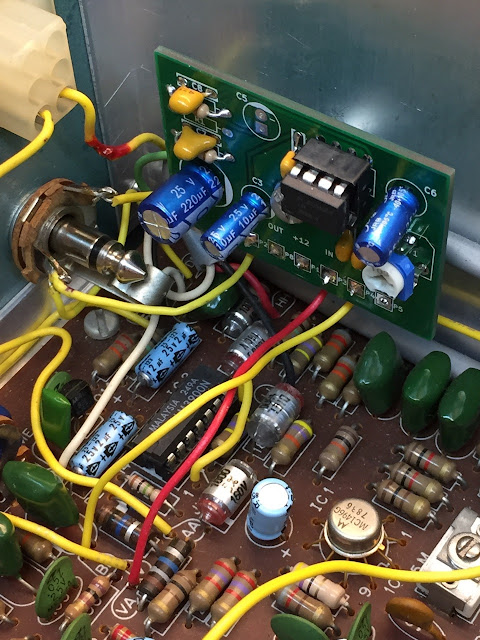

Here’s the new audio board installed:

The additional audio filter with the new 5-pole selectivity switch put in by the previous owner…had to add some audio coupling caps and clean up all the wiring. The plastic piece over the meter was from some old drapery hardware and it now holds the RCV/XMT green/red LEDs:

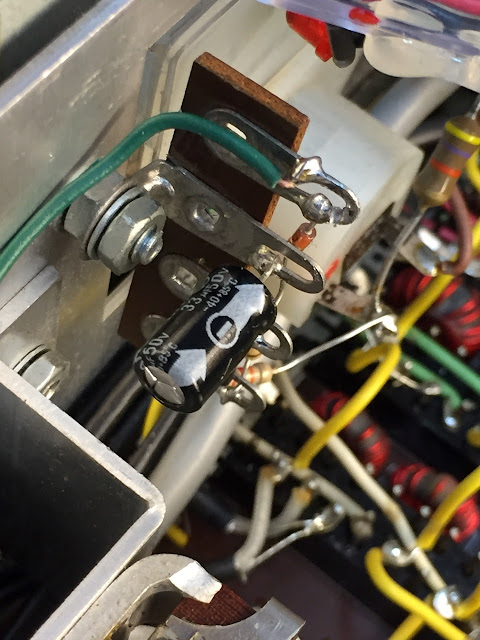

I replaced the original S-meter mod with a proper terminal strip (old parts were just hanging in the air).

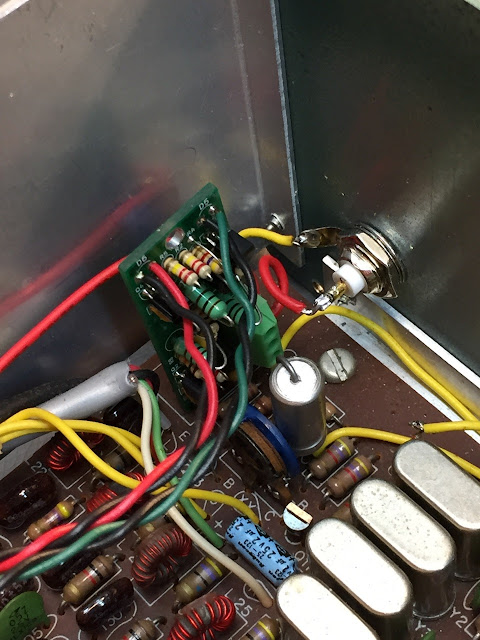

Here’s the solid state T/R circuit that replaced the mechanical relay:

Les Moxon, G6XN

I was on 40 SB tonight talking to Don KC5YR. He is the creator of the web site known as the Moxon Antenna Project: http://www.moxonantennaproject.com/ That site had this great picture of OM Les Moxon, inventor of the wonderful antenna that bears his name. I also found this old QSL card that shows some of Les’s homebrew gear. Les has been a Silent Key for many years now, but his legacy lives on.

Stay Thirsty My Friends — A Very Inspirational Article

There is no real connection to radio here, other than the fact that some of us are in this guy’s age group, and that we have had a few Dos Equis Guy memes on the blog. But do yourself a favor and spend a few minutes with this article. You will be glad you did.

http://www.politico.com/magazine/story/2017/06/02/most-interesting-man-world-friends-barack-obama-215215

Thanks to Larry K8MU for alerting us to this.

Stay thirsty my friends.

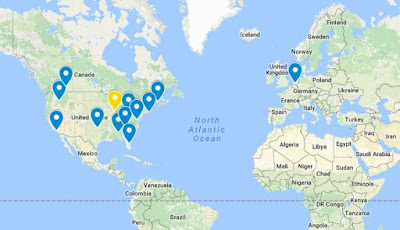

Put Yourself on the BITX Map


On Jun 9, 2017, at 4:53 PM, Doug W wrote:


Seeing the topics for regional operator lists got me thinking. If words are good, pictures are better. I set up a google map that you can add yourself too to help visualize where everyone is located. I was going to add people that responded to the other topics but out of respect for privacy (and my laziness) this should be entirely opt in only. The map is only accessible with the link below. The interface is reasonably intuitive but I will do my best to explain how to add yourself.

go to

https://drive.google.com/open?id=1Oa_egVdStSJBF5C7mpS6MXrkces&usp=sharing

type your address in the search bar on the top of the map (the box with the magnifying glass to the right)

hit enter or click the magnifying glass
verify the location displayed
click add to map at the bottom of the box that pops up
now click the pencil/edit icon at the bottom right of the box
change the highlighted address to your call sign and click save at the bottom left of the box
you can also add more information to your spot if you choose to
bookmark the link and check back as more people add themselves

I am making this sound much more complicated than it is. If anyone can describe the process better please do.

FDIM: Bob Crane Interview with Preston Douglas WJ2V

WJ2V with Chuck Adams and Zack Lau

Our ace journalist in Dayton Ohio caught up with QRPARCI President Preston Douglas, WJ2V.

Congratulations to Preston and QRPARCI for a successful FDIM event.

Pete and I will heed his warning!

Listen to the interview here:

http://soldersmoke.com/FDIM17WJ2V.mp3


Thanks Bob! Thanks Preston!

Old Timer Needs Soldering Help

I believe Harold is in Elk Grove California. Is there anyone out there who could help him? If so, please send me an e-mail at soldersmoke@yahoo.com
Bill

I’m a very elderly ex-ham living in Elk Grove and my current project is putting together a World War II military surplus IFF. This requires that I solder cable to small circular connectors and I no longer possesss the eye-hand coordination to do this. Do you jnow of any ham who can help me with this-he or she would be reimburses, of course Thanks for you your help

73s Harold S Meltzer ex W2OZX.

The Leon Lambert Crystal Radio

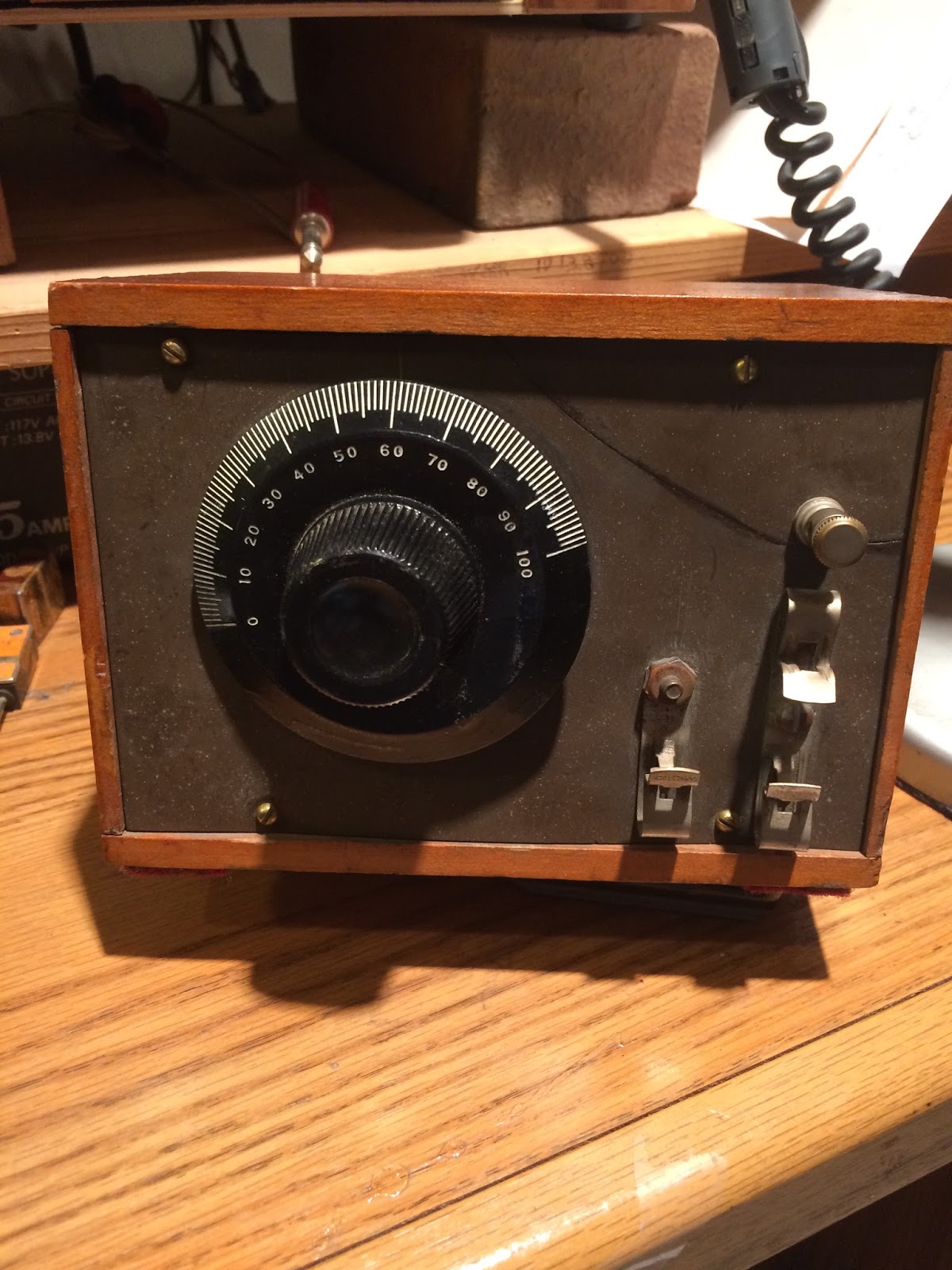

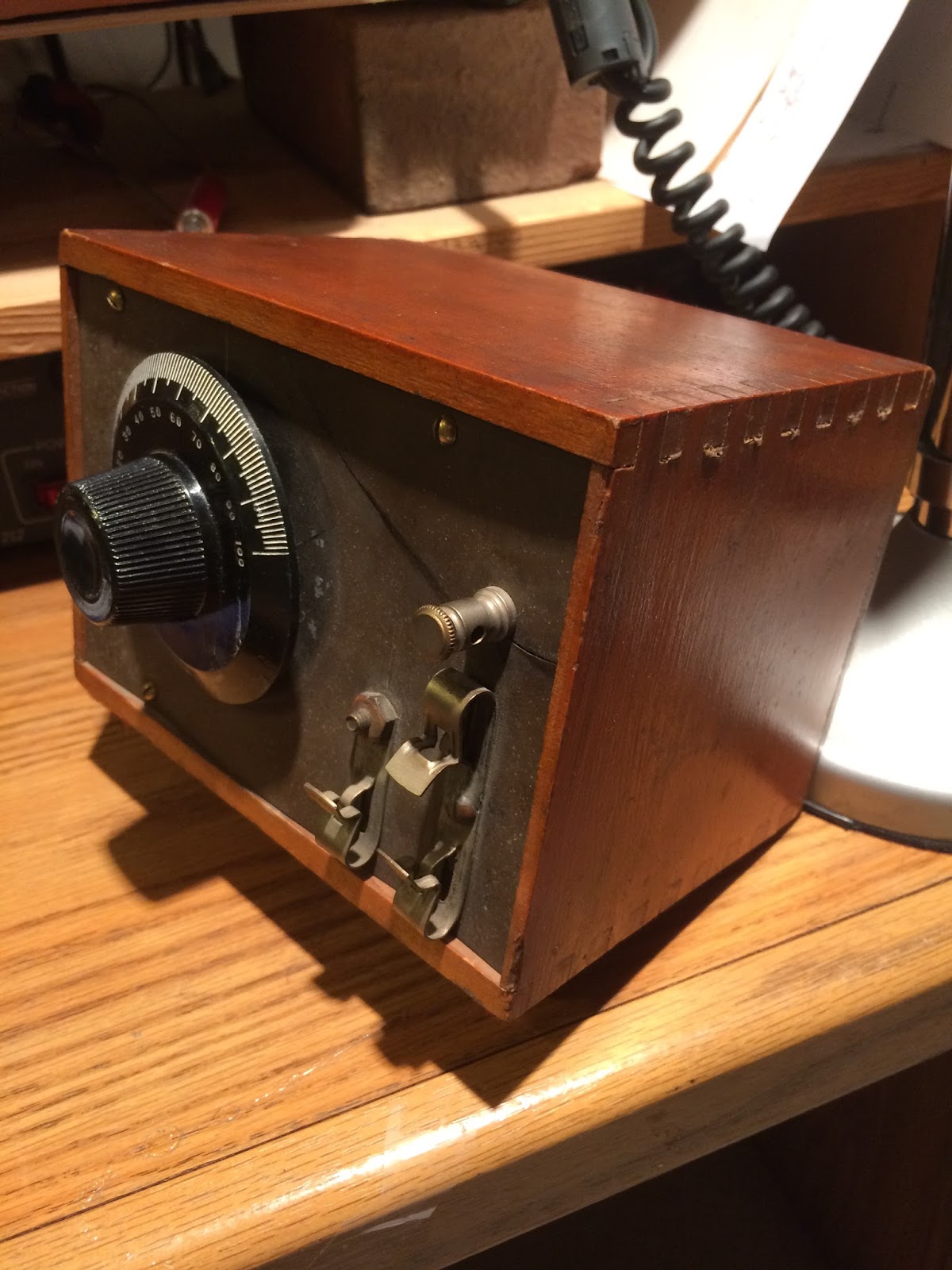

Above you see another gem from the Manassas hamfest. I didn’t know what this was. And I don’t think the seller knew what it was either. I think I gave him 5 bucks for it (as it turns out that is close to the original 1925 price). It was only in the course of looking up yesterday’s Philmore Fixed Crystal Detector that I happened to spot a picture of this thing.

There is not much to it. That nice dial is mechanically connected to a sweeper arm that runs along a big coil. The galena and cats whisker were apparently held in place by the Fahenstock clips on the front. Leon Lambert made these things in Witchita Kansas around 1924. He started making them without the fancy wooden box, but one report says he found a good source for the enclosures:

In 2004 Dale Davenport wrote:

 Leon Lambert’s crystal sets show up maybe as or more often than most other brands from that time period apparently, particularly in the Midwest, There are quite a few variations though: some have a little metal tag tacked on, usually on top front center, some do not have a tag at all. Detectors vary some as well and I’ve seen them with Erla fixed detectors. One thing is more or less constant it seems, and that is the little wooden boxes they are mounted in. I cannot verify the story other than from observations, but was told quite a number of years ago that the boxes the Lambert sets are mounted in were used to ship sticks of chalk, packed in saw dust, to schools. Lambert supposedly had a deal with someone with the local school system to acquire these as they were emptied. I have owned one example, and have seen other examples of these sets that show some pressure marks on the flat sides, near the corners, where they apparently were packed in bundles, and the strapping tape used to secure the bundles left an impression. This seems to indicate that the story might be true and they might be leftover marks from the box’s days as a chalk shipping box.Has anyone else heard the story or can anyone else offer more details on this theory? From: http://www.antiqueradios.com/forums/viewtopic.php?t=36735

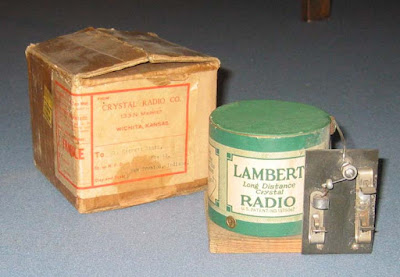

 Here’s a picture of the unboxed version — you can see here where the galena went:

From: http://www.gifarmer.com/radio/crystal.shtml


 And here we see Leon himself:

From: http://makearadio.com/index.php

More info: http://www.radiomuseum.org/r/lambert_long_distance_2.html
http://www.radiomuseum.org/r/lambert_crystal.html
